Duty Cycle Oscillator 4049 (CB24856E)
- Details
- Written by: Newton C. Braga

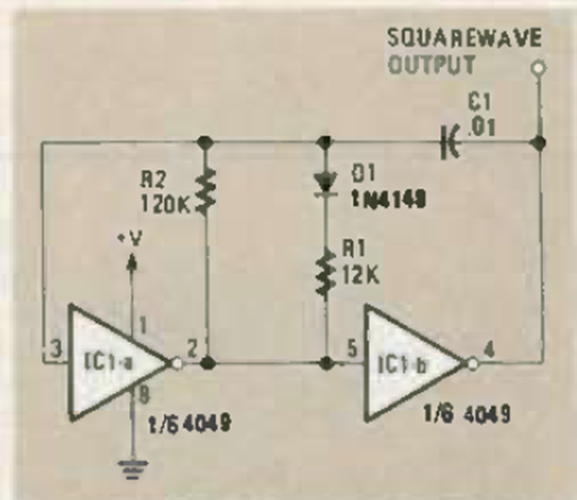

This circuit, which has 10% duty cycle pulses given by R1 in relation to R2, is from a Radio Electronics magazine from November 1984. The power supply can be from 3 to 12 V.
