Ambient Light Monitor (CB24696E)

Details
Written by: Newton C. Braga

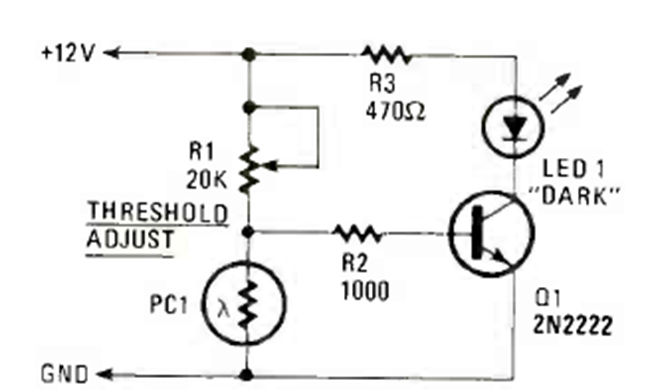

Recommended for automotive applications, this circuit was found in an April 1982 Radio Electronics magazine. The transistor supports equivalents. Sensitivity adjustment is made by R1.




| Clique na imagem para ampliar |
