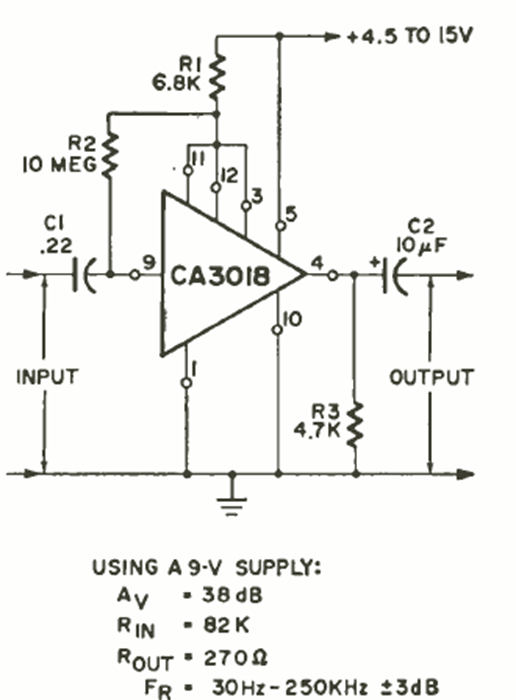

Using the RCA CA3018 integrated circuit, this amplifier was found in an article in the August 1970 Radio Electronics magazine. The circuit characteristics are given next to the diagram.
CA3019 Common Emitter Amplifier (CB24067E)
