Fluorescent Rhythmic Light (CB24143E)

Details
Written by: Newton C. Braga

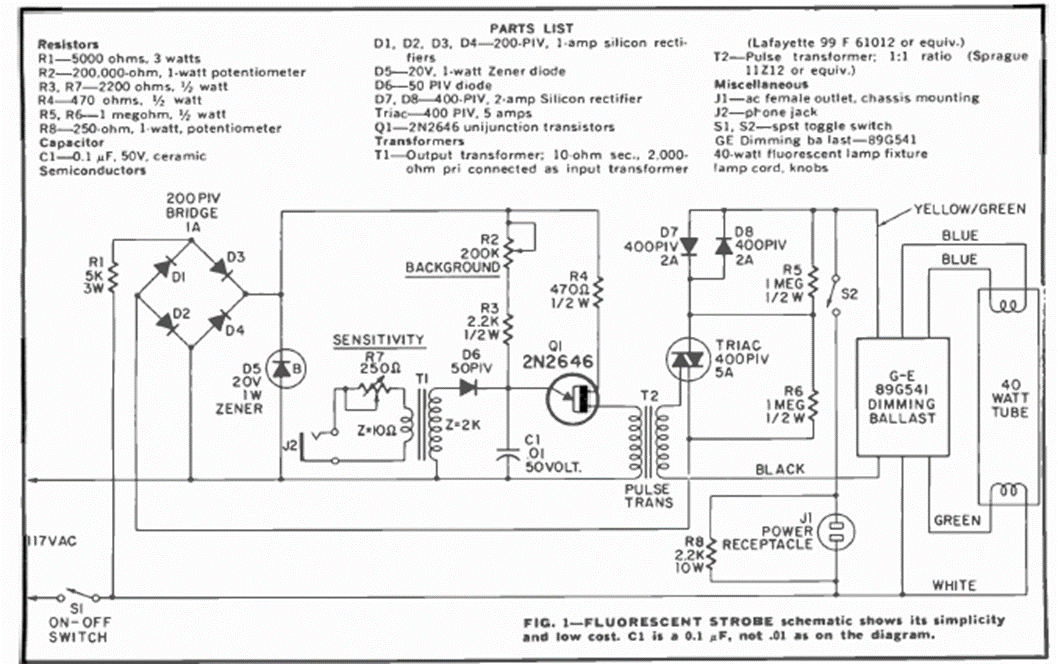

This light effect circuit was found in the July 1971 Radio Electronics magazine. The circuit is powered by 110 V mains but can be modified depending on the triac and lamp.




| Clique na imagem para ampliar |
