Single Transistor Alarm Circuit (CB24372E)

Details
Written by: Newton C. Braga

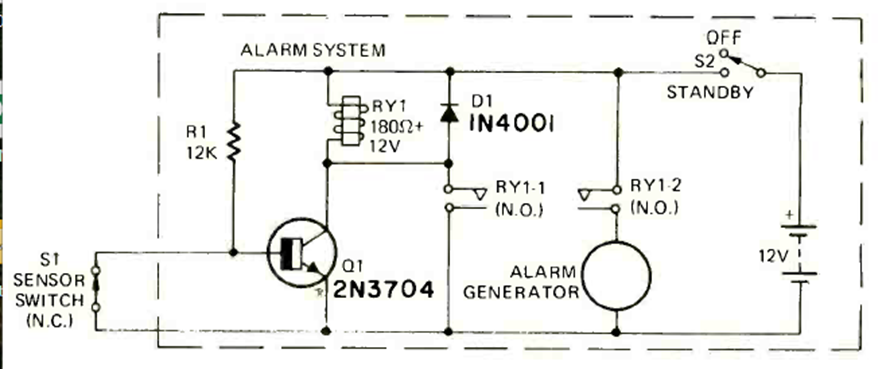

This circuit uses a transistor to trigger the alarm from a low quiescent current sensor. The relay is 12 V. The circuit is from Radio Electronics magazine, April 1975.
