Digital Thermometer (CB24889E)

Details
Written by: Newton C. Braga

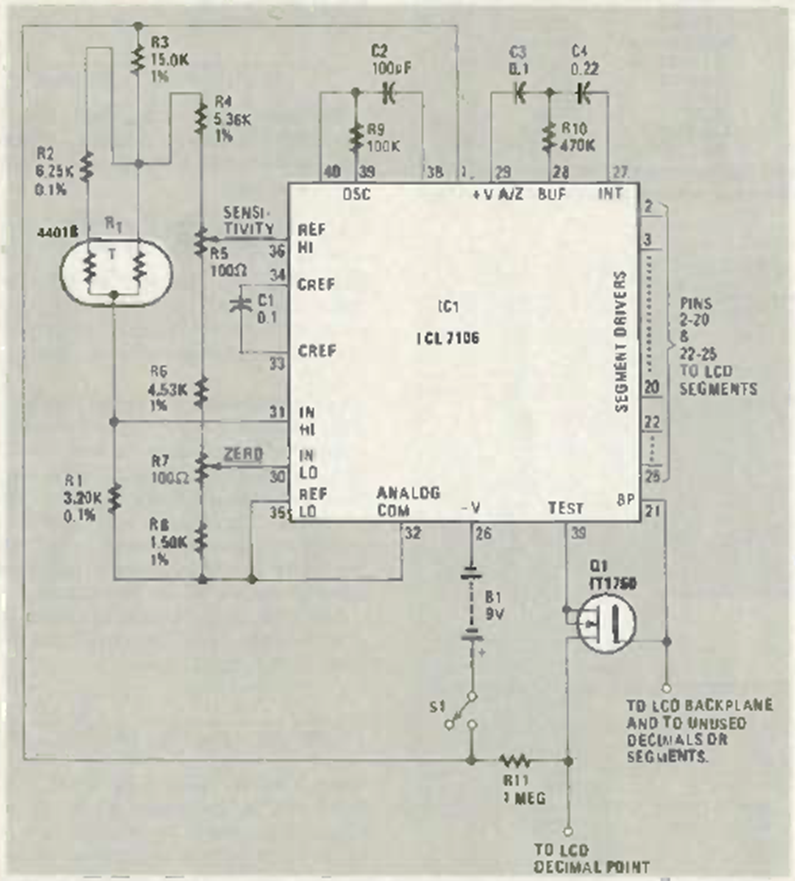

Found in the March 1985 issue of Radio Electronics magazine, this circuit uses a digital module from the time that makes it easy to configure. The circuit uses a bridge thermistor as a sensor.




| Clique na imagem para ampliar |
