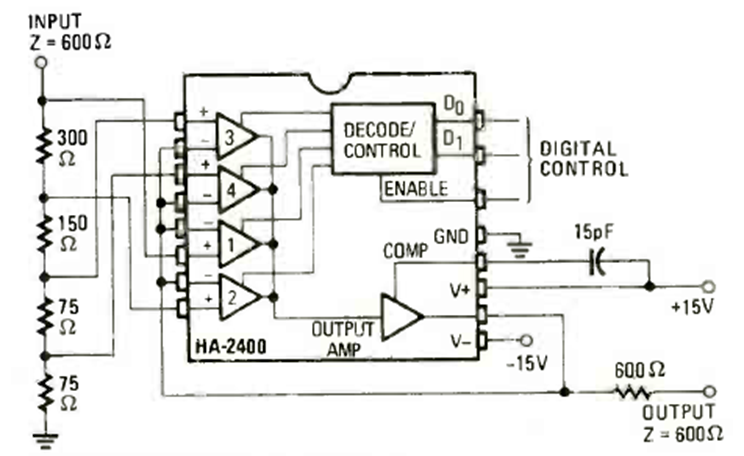

This circuit uses an HA2400 consisting of 4 digitally controlled operational amplifiers. The circuit is from a Radio Electronics magazine from March 1980. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Programmable Attenuator (CB24622E)
- Details
- Written by: Newton C. Braga
