Digital Voltage Reference (CB24682E)

Details
Written by: Newton C. Braga

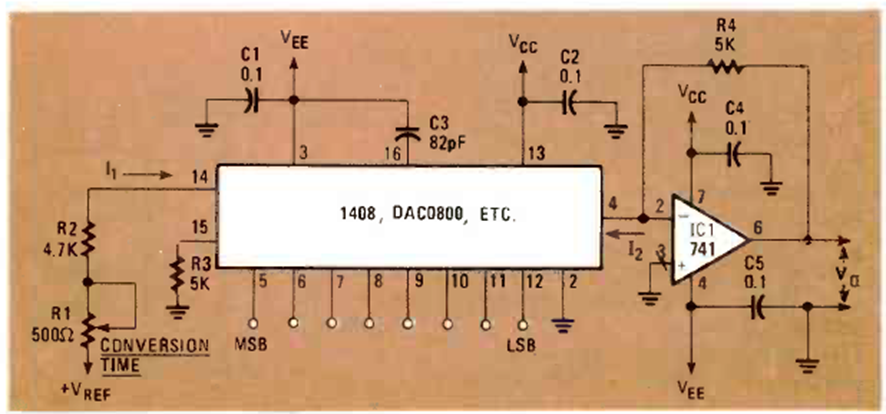

The reference voltage for this circuit can be selected digitally. The circuit is from Radio Electronics dated February 1981. The 741 must be powered by a symmetrical source.
