Stereo Width Control (CB24254E)

Details
Written by: Newton C. Braga

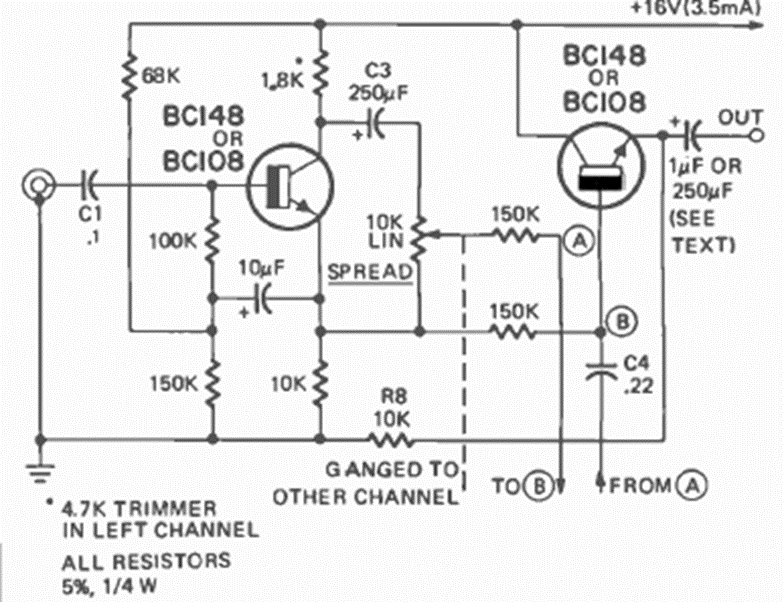

This circuit controls the channel separation as described in the March 1973 Radio Electronis magazine article. The circuit was proposed by Mullard (Philips) and consists of two channels as shown.
