Dimmer (CB24902E)

Details
Written by: Newton C. Braga

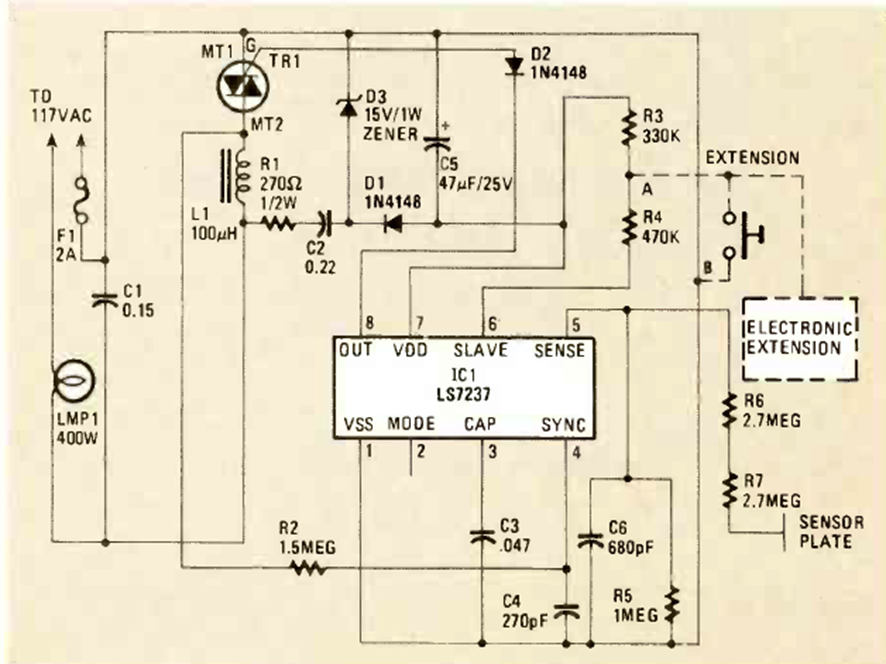

This dimmer for incandescent lamps using triac and an LF7237 IC was found in May 1985 Radio Electronics magazine. The circuit supports extension buttons.
