Radar Detector (CB24979E)

Details
Written by: Newton C. Braga

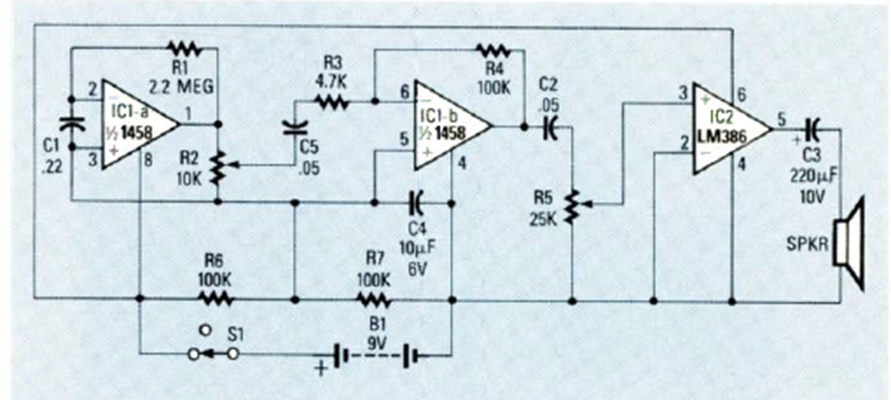

This circuit was found in the July 1986 issue of Radio Electronics magazine. The circuit has a loudspeaker warning system. The sensor is the ceramic capacitor C1 which acts as a transmission line.
