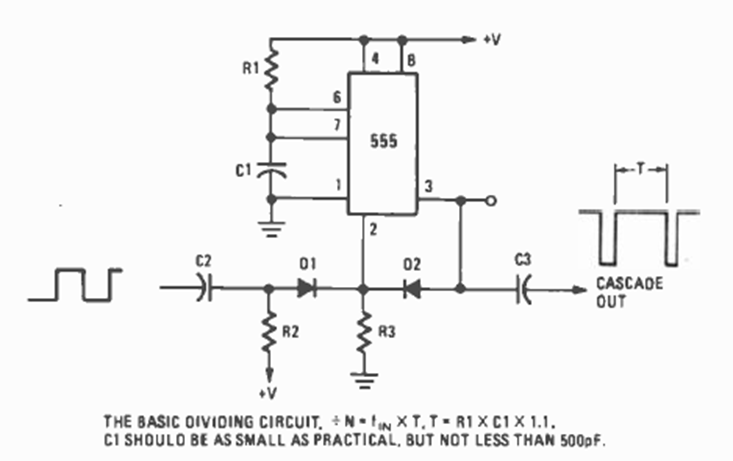

This circuit divides the frequency of a signal by two. The circuit is found in the May 1977 issue of Radio Electronics magazine. The arrangement of the components depends on the frequency of the signal for synchronization.
| Clique na imagem para ampliar |
