Pulse Generator (CB24650E)

Details
Written by: Newton C. Braga

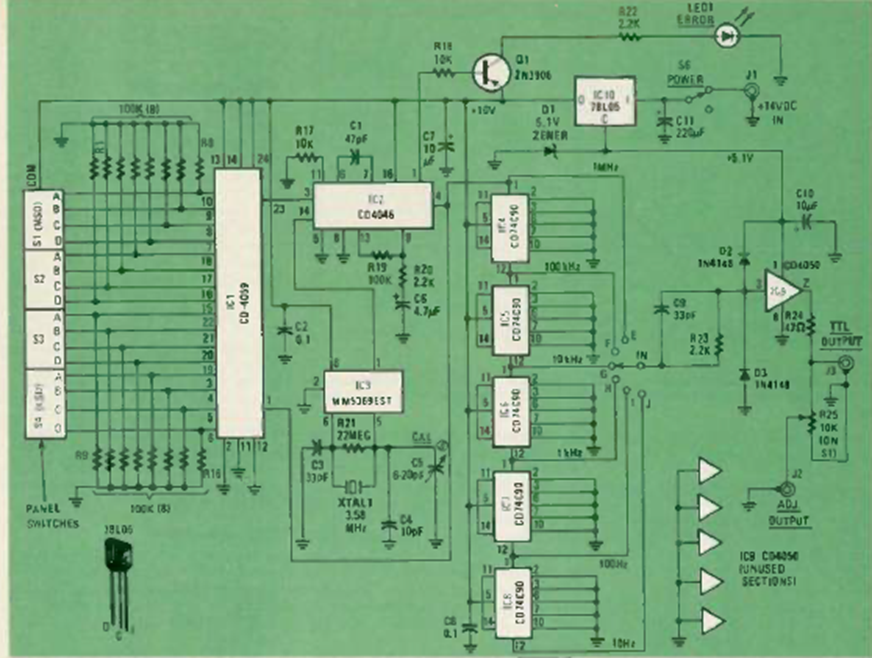

This synthesized generator circuit was found in an article in October 1980 Radio Electronics magazine. The article taught how to assemble it. The circuit generates signals from 1/100 Hz to 1 MHz.
