SCR Light alarm (CB24161E)

Details
Written by: Newton C. Braga

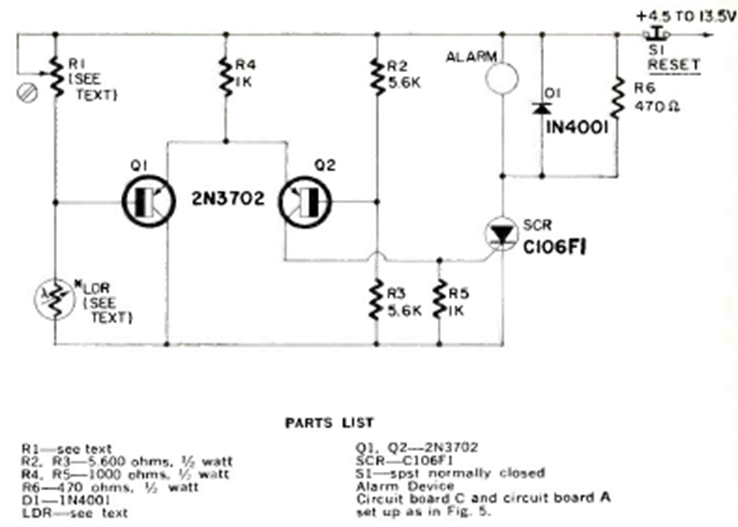

This circuit was found in the September 1971 Radio Electronics magazine. The buzzer can be replaced by a relay according to the supply voltage. R1 adjusts the sensitivity.
