3 1/2 Digit Multimeter (CB24541E)

Details
Written by: Newton C. Braga

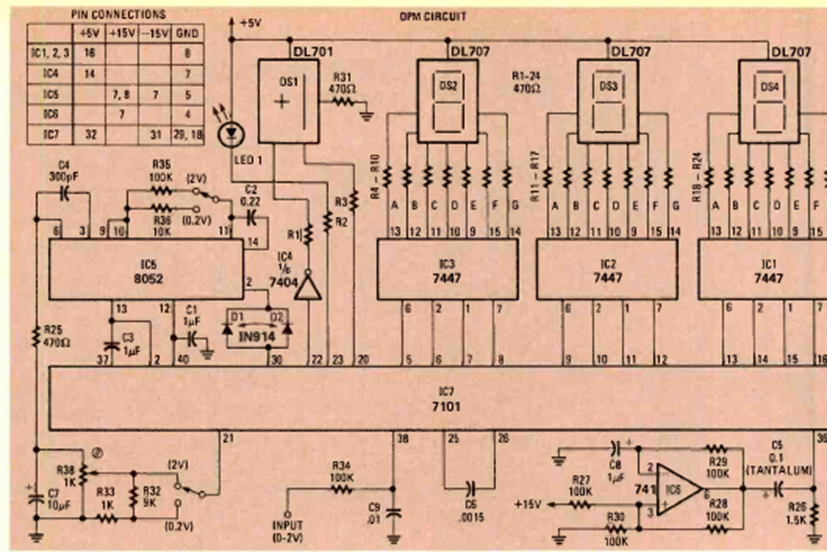

This circuit is from a March 1978 Radio Electronics magazine article that showed how to build it. The circuit is TTL based and is powered. The components used can still be found.
