12 V x 1 A Power Supply 7812 IC (CB24822E)

Details
Written by: Newton C. Braga

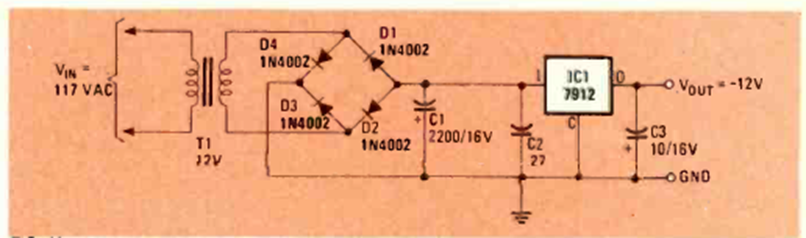

This power supply uses a single-winding transformer. We found it in July 1984 Radio Electronics magazine. The integrated circuit must be equipped with a heat sink.
