Shift register TTL 7474 (CB24356E)

Details
Written by: Newton C. Braga



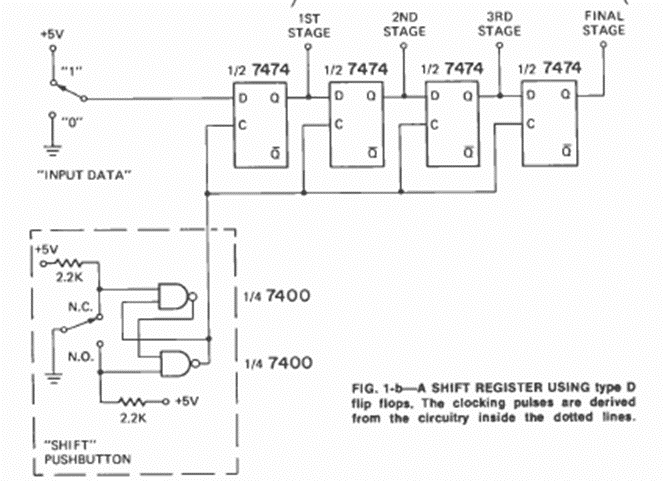

Found in the December 1974 issue of Radio Electronics, this circuit is similar to the previous one, only using another TTL counter. The circuit must be powered by 5 V.




| Clique na imagem para ampliar |
