Digital Clock (CB24616E)

Details
Written by: Newton C. Braga



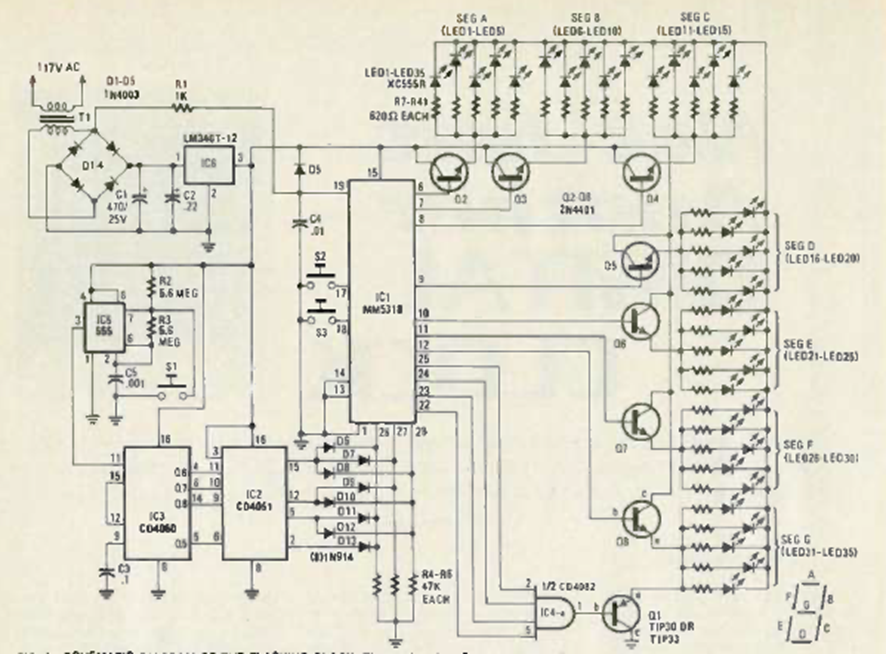

Using the LM3914 this unusual digital clock uses a Bargraph LED indicator. The LEDs are the segments of a 7-segment display. We found it in February 1980 Radio Electronics magazine.




| Clique na imagem para ampliar |









Latest

Circuit Bench

  • Beeper (CB24562E)

      This programmable sound circuit was found in the July 1978 issue of Radio Electronics magazine. It uses an...

  • PUT with 2 Transistors (CB4216E)

           The circuit shown simulates a programmable unijunction transistor (PUT). Transistors may be common...

  • Zener Diode Tester (CB5333E)

          This simple test lets you measure zener voltage. The power must be higher than the diode tested...
