Light alarm with LDR (CB24162E)

Details
Written by: Newton C. Braga

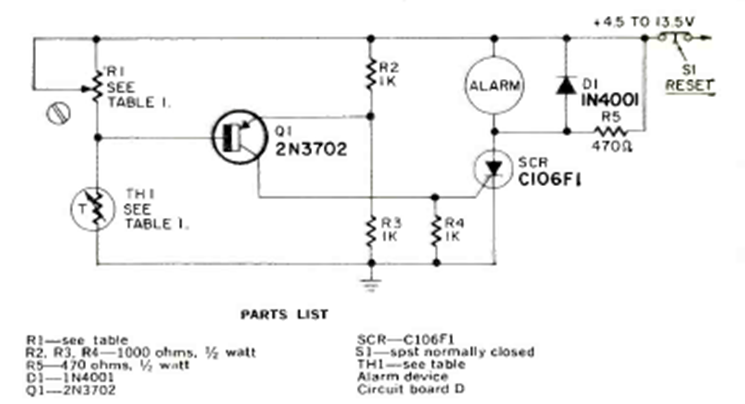

We found this circuit in the September 1971 Radio Electronics magazine. The SCR can be any of the 106 series and the buzzer can be replaced by a relay according to the supply voltage.
