Action Video Game (CB24648E)

Details
Written by: Newton C. Braga

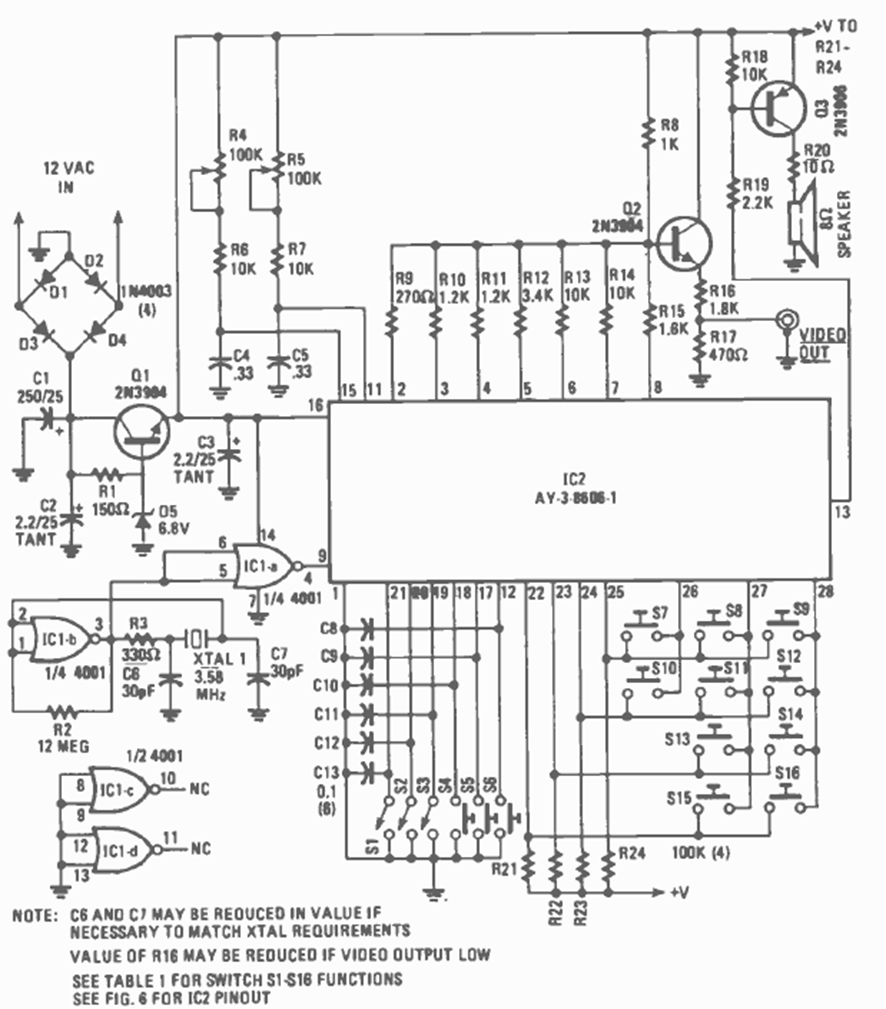

This video game is another of the AY3 series with the AY3-3606 integrated circuit. The circuit was found in the September 1980 Radio Electronics magazine. The circuit does not include the input power.
