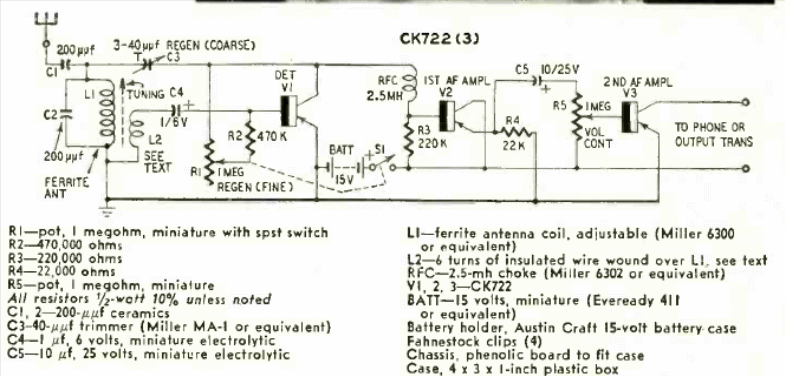

This receiver with earphone listening for the medium wave range was published in Radio Electronics magazine in February 1958. The circuit was powered by a 15 V battery.
| Clique na imagem para ampliar |
3-Transistor Regenerative Receiver CK722 (CB22538E)
