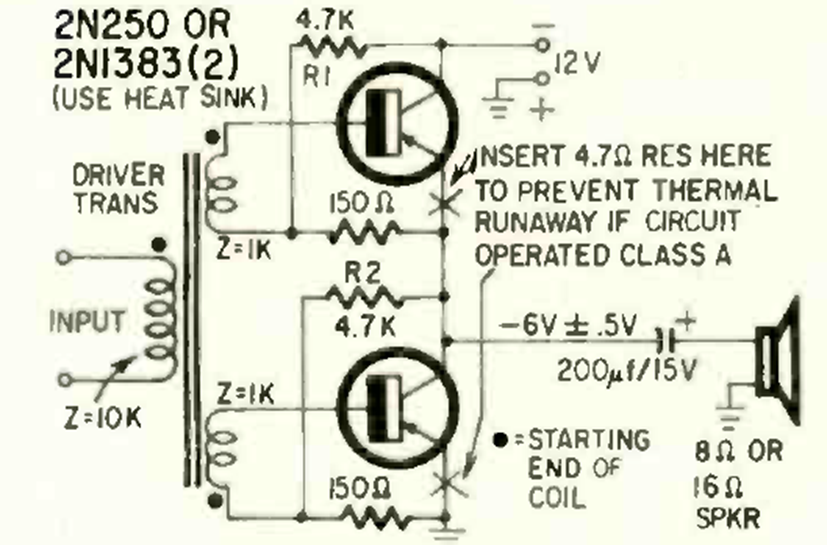

This amplifier stage without an output transformer was found in Radio Electronics magazine from October 1963. The supply is 12 V, and the output is 8 or 16 ohms.
| Clique na imagem para ampliar |
Low Distortion OTL Amplifier (CB23538E)
- Details
- Written by: Newton C. Braga
