Telephone Scrambler (CB23524E)

Details
Written by: Newton C. Braga

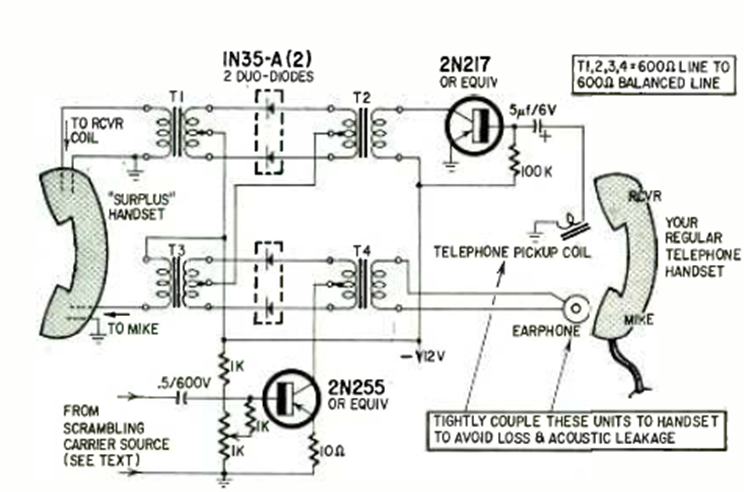

This voice scrambler and descrambler circuit was found in a Radio Electronics from July 1963. Transformers are common types at the time with impedances according to telephones and line.
