DC-DC Converter (CB23616E)

Details
Written by: Newton C. Braga

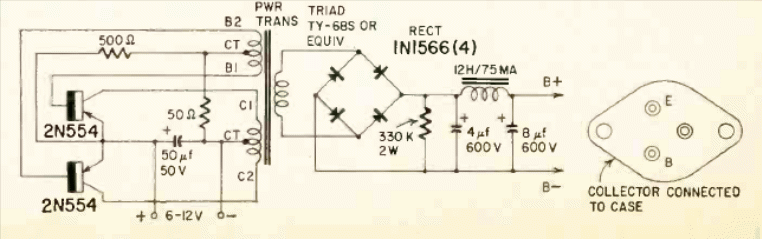

This converter that allows high voltages to be obtained from batteries was found in Radio Electronics magazine from June 1959. The circuit uses a special transformer providing 9 to 18W of output.
