4-transistor amplifier stage (CB23539E)

Details
Written by: Newton C. Braga

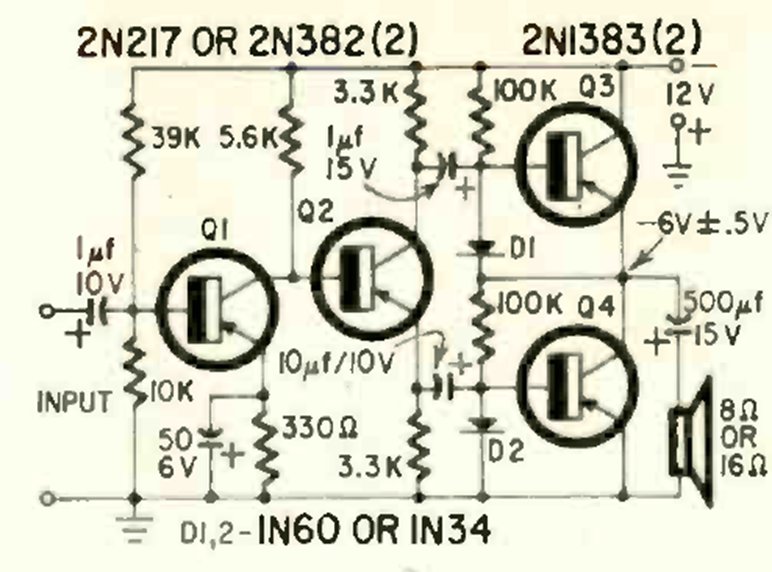

This audio circuit was published in a Rado Electronics issue from October 1963. The transistors are from the time and the output is low impedance. Power is supplied with a voltage of 12 V.




| Clique na imagem para ampliar |
