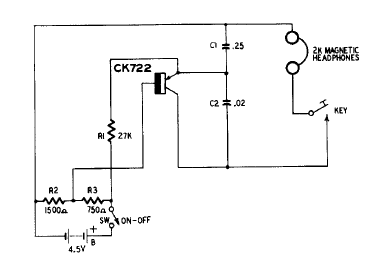

We found this circuit in an American documentation from the 50's. The transistor is made of germanium and the headphones must be high impedance magnetic. Frequency is given by the capacitors.
Code Practice Oscillator (CB22251E)
- Details
- Written by: Newton C. Braga
