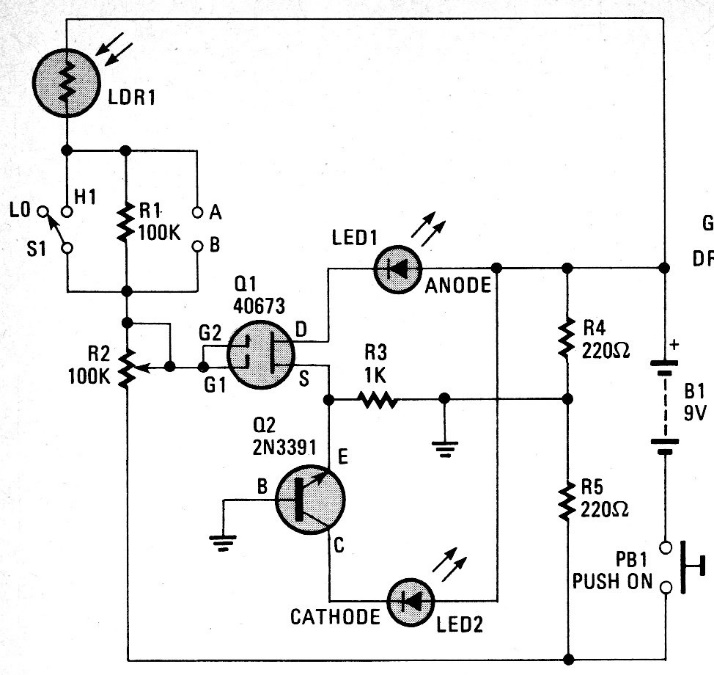

This sophisticated photometer that has a light comparator with LED indicator came out in an American magazine from 1984. The double-gate FET is the critical component of the assembly since the bipolar transistor can be a BC548. The sensor is a common LDR.
| Clique na imagem para ampliar |
