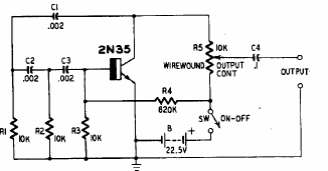

This sinusoidal oscillator with a transistor was found in a publication from the 60's. The transistor is of the time and the frequency determined by the capacitors of the phase shift network.
Phase Shift Oscillator (CB22252E)
- Details
- Written by: Newton C. Braga
