Optical potentiometer (CB22159E)

Details
Written by: Newton C. Braga

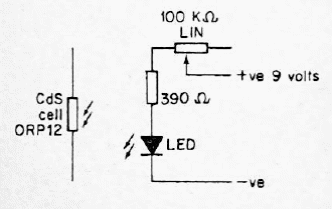

This voltage-controlled potentiometer using an LDR was found in an English documentation. LDR is common and LED of any type.
