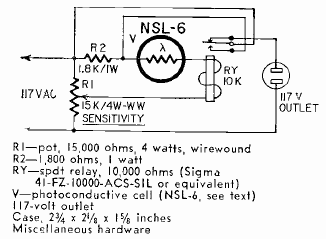

This circuit with passive components uses an LDR as a sensor. The potentiometer adjusts the sensitivity. The relay is a high voltage type for alternating current.
Photoelectric control (CB23660E)
- Details
- Written by: Newton C. Braga
This circuit with passive components uses an LDR as a sensor. The potentiometer adjusts the sensitivity. The relay is a high voltage type for alternating current.
