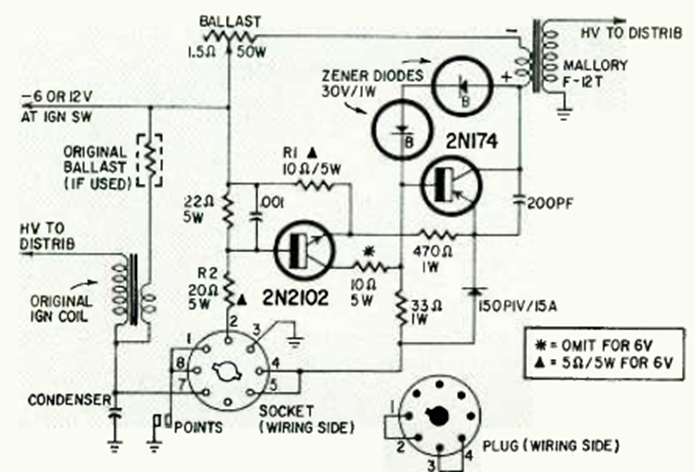

Another electronic ignition circuit for cars with positive ground. This circuit is from a Radio Electronics from December 1964. The circuit uses two transistors, with the power transistor having a heat radiator.
| Clique na imagem para ampliar |
Ignition for cars with positive ground (CB23628E)
- Details
- Written by: Newton C. Braga
