Fire alarm (CB21361E)

Details
Written by: Newton C. Braga

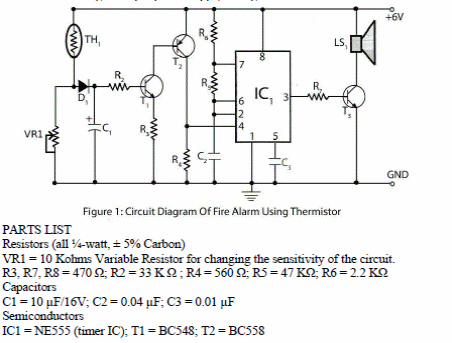

Found in English documentation, this circuit uses a thermistor as a sensor. The trigger point is set to VR1. T3 is a heatsink mounted power transistor. Could be TIP31. Thermistor is 10k.
