Field strength meter (CB21884E)

Details
Written by: Newton C. Braga

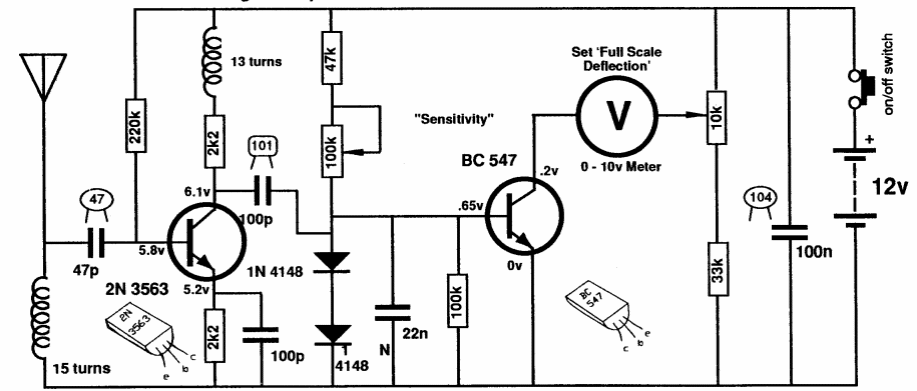

Indicated for checking the operation of small FM transmitters, this circuit was found in an Australian publication from 1991. The components are all common nowadays.
