Dynamic microphone (CB21643E)

Details
Written by: Newton C. Braga

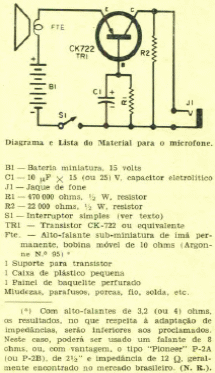

This small preamp for low impedance microphones was found in a Popular Electronics from November 1968. The transistor is in general use at the time.
