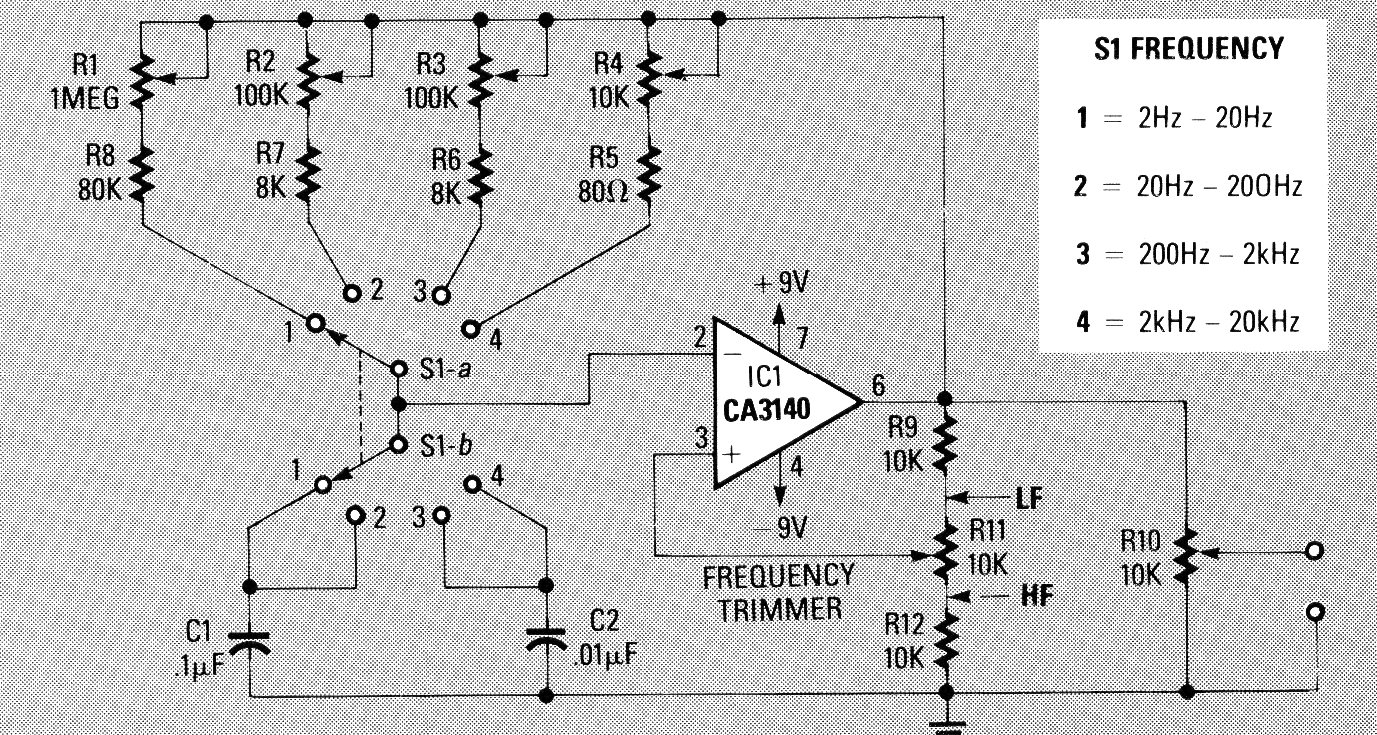

This excellent rectangular signal generator was found in a 1989 Radio Electronics. The ranges are determined by the settings of the potentiometers and the associated capacitors. The circuit must be powered by a symmetrical source.
