Transmitter driven relay (CB21440E)

Details
Written by: Newton C. Braga

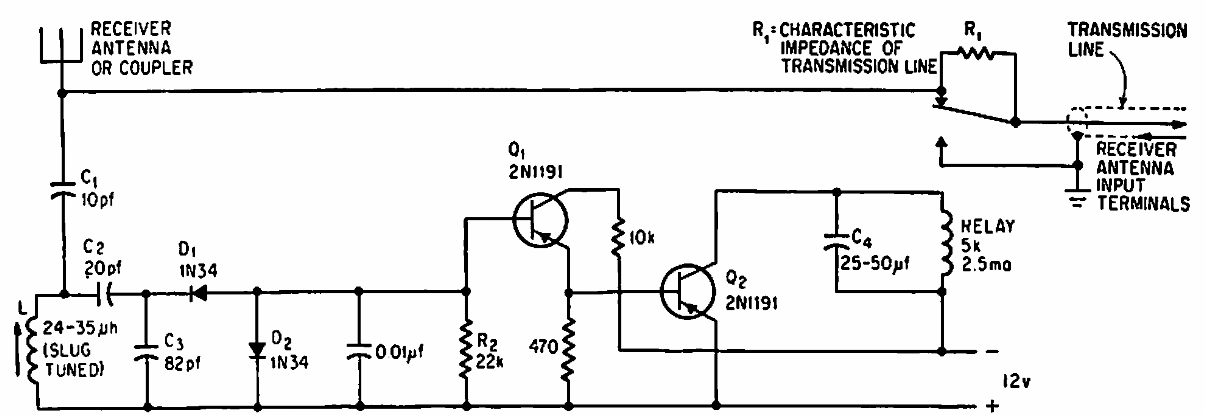

This circuit has the function of automating some type of equipment when a powerful transmitter is activated nearby. The circuit was found in a 1967 documentation.
