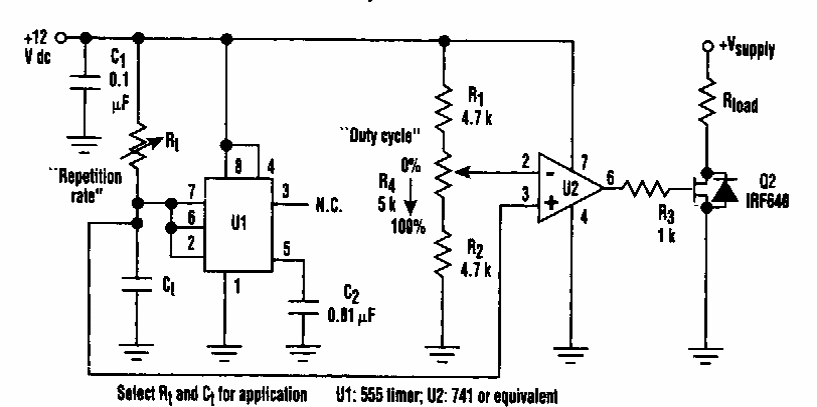

Found in an Electronic Design from the 90's, this circuit generates signals with a controlled active cycle. The frequency depends on the capacitor with no indicated value and the potentiometer setting with the 555.
| Clique na imagem para ampliar |
Active cycle with the 555 IC (CB21131E)
- Details
- Written by: Newton C. Braga
