Crystal Oscillator (CB21966E)
- Details
- Written by: Newton C. Braga

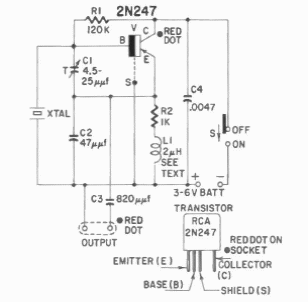

This general-purpose crystal oscillator was found in documentation from 1960. The circuit uses crystals from 1.5 to 14 MHz and the transistor is germanium of the time.
