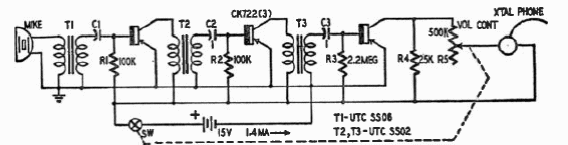

This circuit is from a 1954 transistors publication. The transistors are the CK722 among the first commercial types available on the market. Transformers are special miniature types, common at the time.
Hearing Aid Amplifier (CB21549E)
- Details
- Written by: Newton C. Braga
