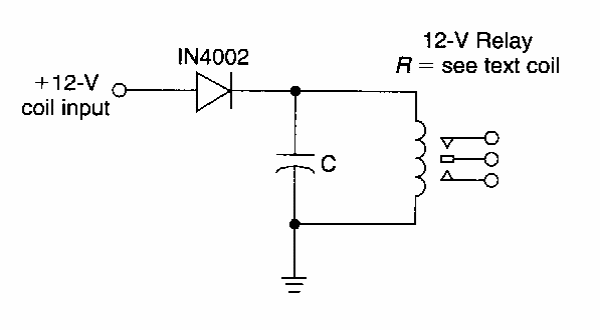

With this circuit it is possible to accelerate the triggering of a relay. The capacitor can have values from 10 uF to 10 000 uF. The circuit is from an old American documentation.
