Low Pass Filter (CB21764E)
- Details
- Written by: Newton C. Braga

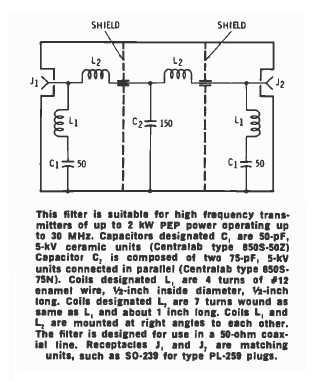

This circuit allows frequencies between 1.8 and 30 MHz to pass. Data for the coils is provided next to the diagram. The circuit is from a 1977 documentation.
