30-hour timer (CB21403E)

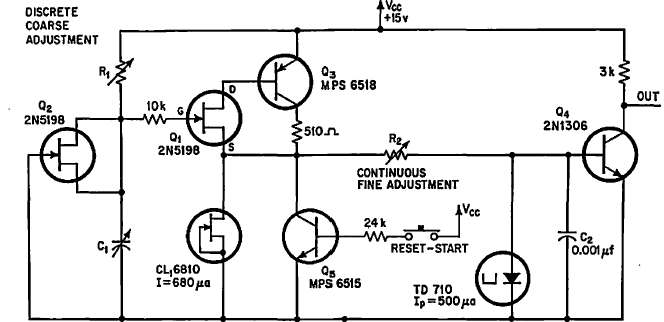

This high-precision circuit was found in a 1969 documentation. The components are from the period. R1 is 100 G ohms and C1 is 0.1 uF.

| Clique na imagem para ampliar |

Comparator with Transistors (CB6550E)
This circuit was obtained from a Philips documentation from 1968. The transistors can be replaced...
XR2206 sinusoidal generator with modified range (CB24497E)
The figure shows how to use the XR2206 to generate sinusoidal signals in a different way. The...
JFET Headphone Amplifier (CB25567E)
This headphone amplifier has good gain and high input impedance. The circuit is from Electronics Now and...
