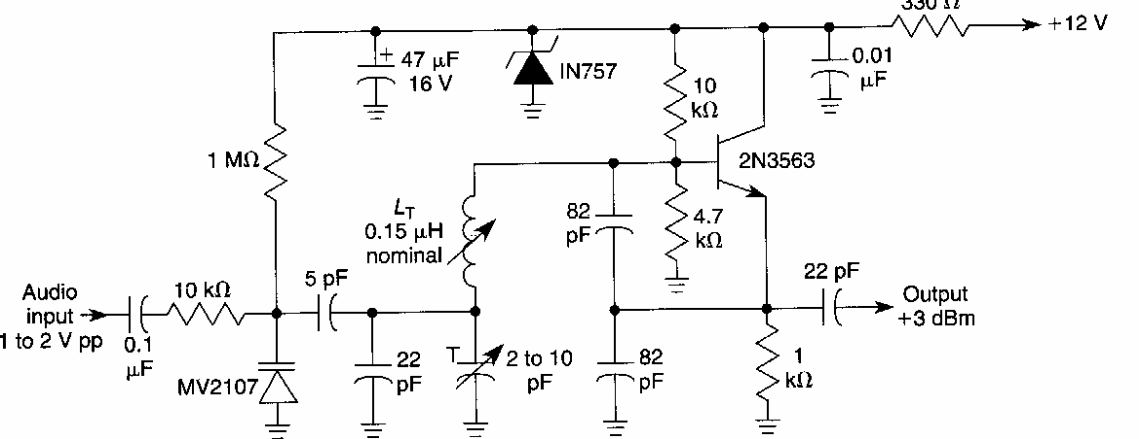

Found in early American documentation, this circuit makes use of a general-purpose transistor and a varicap that admits equivalents. The frequency generated with the indicated components can be adjusted between 75 and 150 MHz.
