Darkness Monitor (CB21019E)

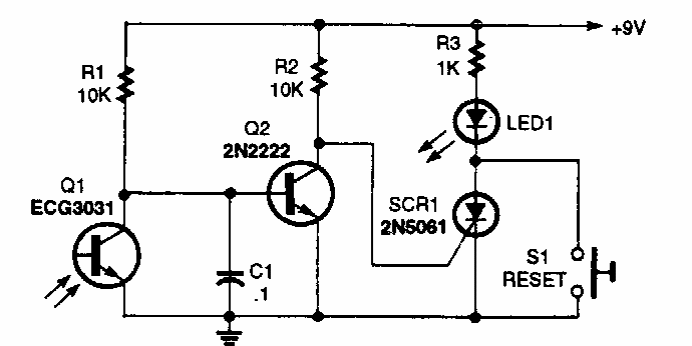

Found in Popular Electronics this circuit triggers an SCR and lights an LED when the location of the sensor is dark.

| Clique na imagem para ampliar |
