100V Negative power supply (CB21182E)

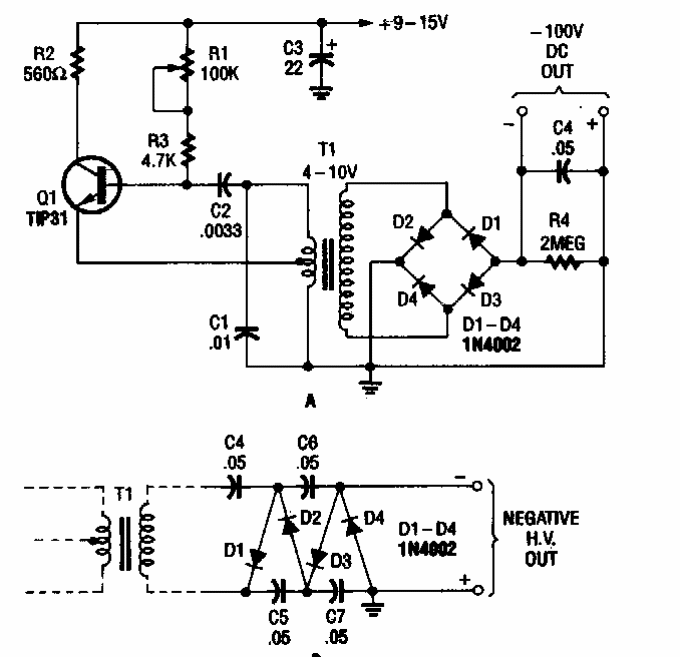

This negative voltage source was found in a Popular Electronics from the 90's. The transformer has 120V secondary and 4-12V primary.
