5V power supply (CB21160E)

Details
Written by: Newton C. Braga

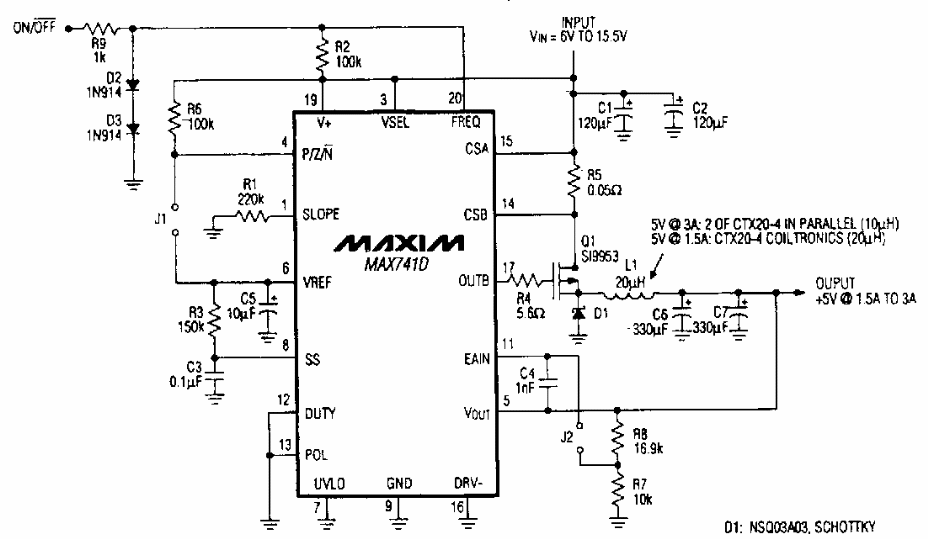

This 5V power supply with a 1.5 to 3 A current was found in Maxim documentation from the 90s. The integrated circuit is the MAX741D.
