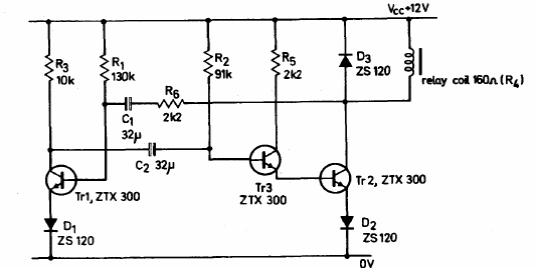

Found in a 1974 Ferranti transistor manual, this circuit drives a sensitive 12V relay in asymmetric cycles given by the capacitors. Capacitors can be changed.
Astable 3 seconds on and 2 seconds off (CB21834E)
- Details
- Written by: Newton C. Braga
Found in a 1974 Ferranti transistor manual, this circuit drives a sensitive 12V relay in asymmetric cycles given by the capacitors. Capacitors can be changed.
