Tunnel diode trigger (CB21468E)

Details
Written by: Newton C. Braga

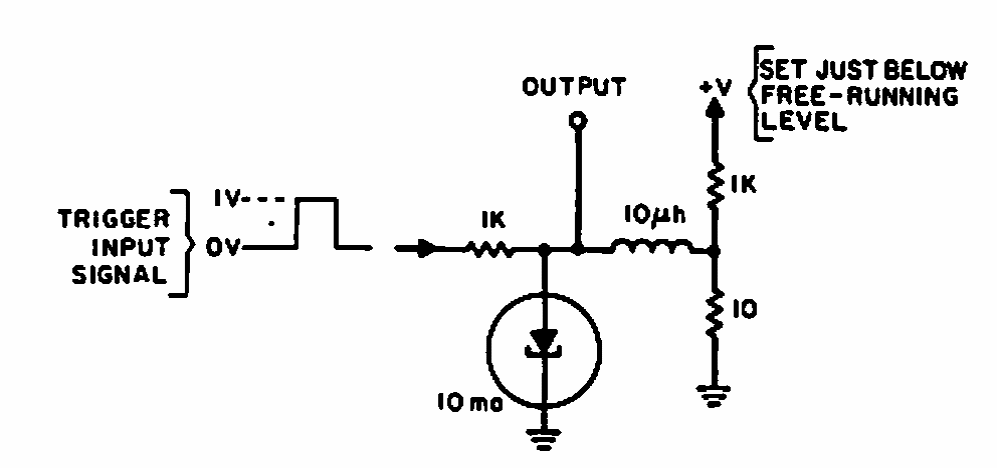

This circuit was taken from old American documentation. With it, it is possible to generate pulses like a Schmitt trigger, but using a tunnel diode.
