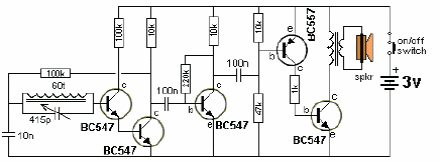

Although the AM has its days numbered, this is a simple receiver, quite sensitive by the number of stages it contains. The coil has 80 to 100 turns of wire 26 or 28 in a 15 cm ferrite rod or close to it. The transformer is the type found on old transistor radios.
