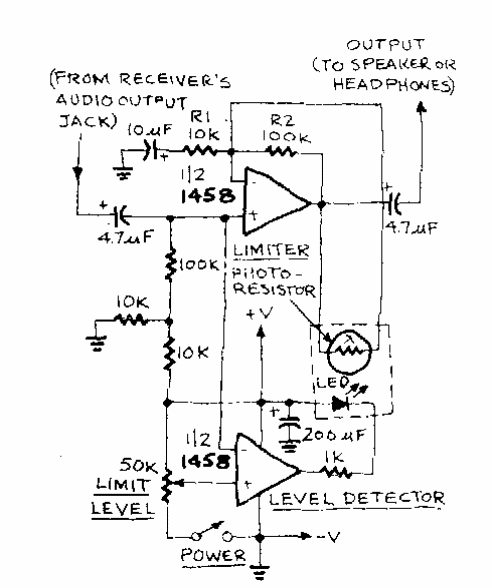

We found this circuit in Radio Electronics from the 1980s. The circuit uses an optical coupler with LDR. The operational can be the 741 since the original is a double version of it, and the power supply must be symmetrical.
Audio limiter (CB20637E)
- Details
- Written by: Newton C. Braga
